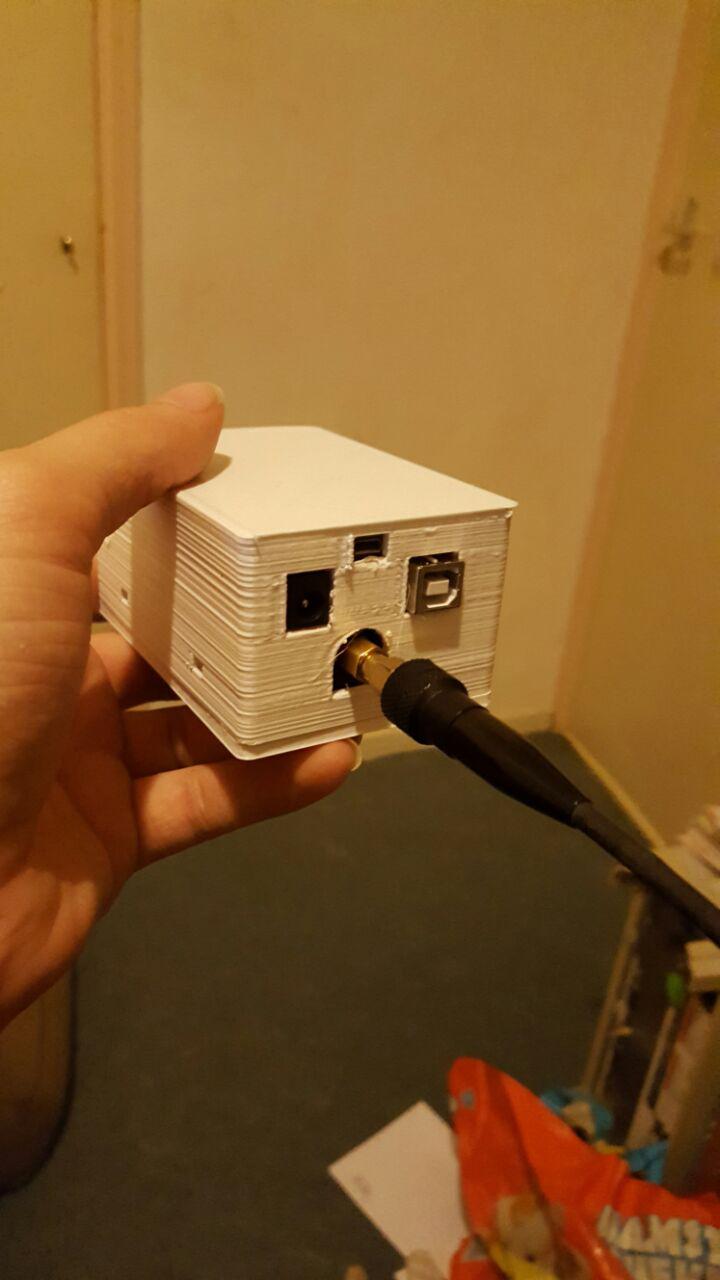

DVMega case

After receiving my DVMega and the introduction of BlueSpot I set out on building a case around my DVMega (arduino)

OpenSCAD model

/galleries/DVMega/DVMega_OpenSCAD_Model.thumbnail.png /galleries/DVMega/DVMega_antenna_installed.thumbnail.jpg

Parts

  • Charge controller + bug boost
  • Arduino uno
  • DVMega for arduino
  • 3D printed case
  • LiPo 4000mAh battery
  • Bluetooth serial module

For more images see the gallery

Openscad code

// DVmega case maker
// Made by PD0ZRY

//Make the Case
//mega_ambe();
accu_monitor = 17;
uno_battery();
%translate([55,67.5+accu_monitor,29.5]) rotate([90,180,0]) usb_charger();
%translate([0,0,8]) arduino(UNO);
//%color("red") translate([2,0,36]) cube([50,85,8.5]); //Battery
%translate([39,-3,2.5]) rotate([180,180,180+90]) micro_usb_board(); //z=2

//enclosureLid(UNO);


module micro_usb_board() {
    difference() {
    cube([15,14,2]);
    }
   translate([-1,3,2]) cube([6,8,3]);
}
module usb_charger(){
 pcb_height = 2;
 cube([57,27,pcb_height]); //PCB
 translate([13,0,pcb_height]) cube([14.6,10,7]); //USB1
 translate([38,0,pcb_height]) cube([14.6,10,7]); //USB2
 translate([29,0,pcb_height]) cube([8,6,3]); //Micro USB
 translate([0,3.5,pcb_height]) cube([7,7.3,8]); //Button
 translate([18,10,-7]) cube([28.5,15.7,7]); //Display part1
 translate([14,10,-5]) cube([5,13,5]); //Display part2
}

module uno_battery() {
  difference() {
    enclosure(UNO,3,3,10+5+9,3,TAPHOLE); // basic box with tapholes
    translate([32,0,30]) rotate([90,90,0]) cylinder(h=8,r1=7,r2=7); // RF connector
    translate([32-7,-10,30]) cube([14,14,7.5]);
    translate([7.75,90,3]) rotate([90,0,0]) cube([28.5+1.5,15.7+1.5,7+1.5]); //display hole
    translate([55,80,23.25]) rotate([0,90,0]) cylinder(5,1.6,1.6); //Power button
    translate([26,-7,3]) cube([12,8,7]); // USB charger port
    translate([39.25,-3,2]) rotate([0,0,90]) cube([15.5,14.5,2]); //Chart port cutt-out
  }
}

module mega_ambe() {
  difference() {
    enclosure(MEGA,3,3,10+5,3,TAPHOLE); // basic box with tapholes
    translate([32,0,30]){
       rotate([90,90,0]) cylinder(h=8,r1=7,r2=7); // RF connector
    }
    translate([32-7,-10,30]){
       cube([14,14,10]);
    }
    translate([6,140,8+1.7]) cube([11,10,11]); //lf power
    translate([8+16,150,8+6+1.7]) rotate([90,90,0]) cylinder(h=10,r1=5,r2=5); //lf out
    translate([8+17+7,140,8+1.7]) cube([12,14,15]); //mic in

  }

  //Make the lid
  //translate([-100,0,0])
  /*difference() {
    enclosureLid(DUE);
    translate([32,119,-5])cylinder(h=10,r1=5,r2=5); //potmeter hole
  }*/
}


// Arduino connectors library
//
// Copyright (c) 2013 Kelly Egan
//
// The MIT License (MIT)
//
// Permission is hereby granted, free of charge, to any person obtaining a copy of this software
// and associated documentation files (the "Software"), to deal in the Software without restriction,
// including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense,
// and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do
// so, subject to the following conditions:
//
// The above copyright notice and this permission notice shall be included in all copies or substantial
// portions of the Software.
//
// THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
// NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
// IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
// WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
// SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
//

//include <pins.scad>

//Constructs a roughed out arduino board
//Current only USB, power and headers
module arduino(boardType = UNO) {
    //The PCB with holes
    difference() {
        color("SteelBlue")
            boardShape( boardType );
        translate([0,0,-pcbHeight * 0.5]) holePlacement(boardType = boardType)
            color("SteelBlue") cylinder(r = mountingHoleRadius, h = pcbHeight * 2, $fn=32);
    }
    //Add all components to board
    components( boardType = boardType, component = ALL );
}

//Creates a bumper style enclosure that fits tightly around the edge of the PCB.
module bumper( boardType = UNO, mountingHoles = false ) {
    bumperBaseHeight = 2;
    bumperHeight = bumperBaseHeight + pcbHeight + 0.5;
    dimensions = boardDimensions(boardType);

    difference() {
        union() {
            //Outer rim of bumper
            difference() {
                boardShape(boardType = boardType, offset=1.4, height = bumperHeight);
                translate([0,0,-0.1])
                    boardShape(boardType = boardType, height = bumperHeight + 0.2);
            }

            //Base of bumper
            difference() {
                boardShape(boardType = boardType, offset=1, height = bumperBaseHeight);
                translate([0,0, -0.1])
                    boardShape(boardType = boardType, offset=-2, height = bumperHeight + 0.2);
            }

            //Board mounting holes
            holePlacement(boardType=boardType)
                cylinder(r = mountingHoleRadius + 1.5, h = bumperBaseHeight, $fn = 32);

            //Bumper mounting holes (exterior)
            if( mountingHoles ) {
                difference() {
                    hull() {
                        translate([-6, (dimensions[1] - 6) / 2, 0])
                            cylinder( r = 6, h = pcbHeight + 2, $fn = 32 );
                        translate([ -0.5, dimensions[0] / 2 - 9, 0])
                            cube([0.5, 12, bumperHeight]);
                    }
                    translate([-6, (dimensions[0] - 6) / 2, 0])
                        mountingHole(holeDepth = bumperHeight);
                }
                difference() {
                    hull() {
                        translate([dimensions[0] + 6, (dimensions[1] - 6) / 2,0])
                            cylinder( r = 6, h = pcbHeight + 2, $fn = 32 );
                        translate([ dimensions[0], dimensions[1] / 2 - 9, 0])
                            cube([0.5, 12, bumperHeight]);
                    }
                    translate([dimensions[0] + 6, (dimensions[1] - 6) / 2,0])
                        mountingHole(holeDepth = bumperHeight);
                }
            }
        }
        translate([0,0,-0.5])
        holePlacement(boardType=boardType)
            cylinder(r = mountingHoleRadius, h = bumperHeight, $fn = 32);
        translate([0, 0, bumperBaseHeight]) {
            components(boardType = boardType, component = ALL, offset = 1);
        }
        translate([4,(dimensions[1] - dimensions[1] * 0.4)/2,-1])
            cube([dimensions[0] -8,dimensions[1] * 0.4,bumperBaseHeight + 2]);
    }
}

//Setting for enclosure mounting holes (Not Arduino mounting)
NOMOUNTINGHOLES = 0;
INTERIORMOUNTINGHOLES = 1;
EXTERIORMOUNTINGHOLES = 2;

//Create a board enclosure
module enclosure(boardType = UNO, wall = 3, offset = 3, heightExtension = 10, cornerRadius = 3, mountType = TAPHOLE) {
    standOffHeight = 5;

    dimensions = boardDimensions(boardType);
    boardDim = boardDimensions(boardType);
    pcbDim = pcbDimensions(boardType);

    enclosureWidth = pcbDim[0] + (wall + offset) * 2;
    enclosureDepth = pcbDim[1] + (wall + offset) * 2;
    enclosureHeight = boardDim[2] + wall + standOffHeight + heightExtension;

    union() {
        difference() {
            //Main box shape
            boundingBox(boardType = boardType, height = enclosureHeight, offset = wall + offset, include=PCB, cornerRadius = wall);

            translate([ 0, 0, wall]) {
                //Interior of box
                boundingBox(boardType = boardType, height = enclosureHeight, offset = offset, include=PCB, cornerRadius = wall);

                //Punch outs for USB and POWER
                translate([0, 0, standOffHeight]) {
                    components(boardType = boardType, offset = 1, extension = wall + offset + 10);
                }
            }

            //Holes for lid clips
            translate([0, enclosureDepth * 0.75 - (offset + wall), enclosureHeight]) {
                translate([-offset, 0, 0])
                    rotate([0, 180, 90]) clipHole(clipHeight = 10, holeDepth = wall + 0.2);
                translate([offset + boardDim[0], 0, 0])
                    rotate([0, 180, 270]) clipHole(clipHeight = 10, holeDepth = wall + 0.2);
            }

            translate([0, enclosureDepth * 0.25 - (offset + wall), enclosureHeight]) {
                translate([-offset, 0, 0])
                    rotate([0, 180, 90]) clipHole(clipHeight = 10, holeDepth = wall + 0.2);
                translate([offset + dimensions[0], 0, 0])
                    rotate([0, 180, 270]) clipHole(clipHeight = 10, holeDepth = wall + 0.2);
            }
        }
        translate([0, 0, wall]) {
            standoffs(boardType = boardType, height = standOffHeight, mountType = mountType);
        }
    }
}

//Create a snap on lid for enclosure
module enclosureLid( boardType = UNO, wall = 3, offset = 3, cornerRadius = 3, ventHoles = false) {
    dimensions = boardDimensions(boardType);
    boardDim = boardDimensions(boardType);
    pcbDim = pcbDimensions(boardType);

    enclosureWidth = pcbDim[0] + (wall + offset) * 2;
    enclosureDepth = pcbDim[1] + (wall + offset) * 2;

    difference() {
        union() {
            boundingBox(boardType = boardType, height = wall, offset = wall + offset, include=PCB, cornerRadius = wall);

            translate([0, 0, -wall * 0.5])
                boundingBox(boardType = boardType, height = wall * 0.5, offset = offset - 0.5, include=PCB, cornerRadius = wall);

            //Lid clips
            translate([0, enclosureDepth * 0.75 - (offset + wall), 0]) {
                translate([-offset, 0, 0])
                    rotate([0, 180, 90]) clip(clipHeight = 10);
                translate([offset + boardDim[0], 0, 0])
                    rotate([0, 180, 270]) clip(clipHeight = 10);
            }

            translate([0, enclosureDepth * 0.25 - (offset + wall), 0]) {
                translate([-offset, 0, 0])
                    rotate([0, 180, 90]) clip(clipHeight = 10);
                translate([offset + dimensions[0], 0, 0])
                    rotate([0, 180, 270]) clip(clipHeight = 10);
            }

        }
    }
}

//Offset from board. Negative values are insets
module boardShape( boardType = UNO, offset = 0, height = pcbHeight ) {
    dimensions = boardDimensions(boardType);

    xScale = (dimensions[0] + offset * 2) / dimensions[0];
    yScale = (dimensions[1] + offset * 2) / dimensions[1];

    translate([-offset, -offset, 0])
        scale([xScale, yScale, 1.0])
            linear_extrude(height = height)
                polygon(points = boardShapes[boardType]);
}

//Create a bounding box around the board
//Offset - will increase the size of the box on each side,
//Height - overides the boardHeight and offset in the z direction

BOARD = 0;        //Includes all components and PCB
PCB = 1;          //Just the PCB
COMPONENTS = 2;   //Just the components

module boundingBox(boardType = UNO, offset = 0, height = 0, cornerRadius = 0, include = BOARD) {
    //What parts are included? Entire board, pcb or just components.
    pos = ([boardPosition(boardType), pcbPosition(boardType), componentsPosition(boardType)])[include];
    dim = ([boardDimensions(boardType), pcbDimensions(boardType), componentsDimensions(boardType)])[include];

    //Depending on if height is set position and dimensions will change
    position = [
                pos[0] - offset,
                pos[1] - offset,
                (height == 0 ? pos[2] - offset : pos[2] )
                ];

    dimensions = [
                dim[0] + offset * 2,
                dim[1] + offset * 2,
                (height == 0 ? dim[2] + offset * 2 : height)
                ];

    translate( position ) {
        if( cornerRadius == 0 ) {
            cube( dimensions );
        } else {
            roundedCube( dimensions, cornerRadius=cornerRadius );
        }
    }
}

//Creates standoffs for different boards
TAPHOLE = 0;
PIN = 1;

module standoffs(
    boardType = UNO,
    height = 10,
    topRadius = mountingHoleRadius + 1,
    bottomRadius =  mountingHoleRadius + 2,
    holeRadius = mountingHoleRadius,
    mountType = TAPHOLE
    ) {

    holePlacement(boardType = boardType)
        union() {
            difference() {
                cylinder(r1 = bottomRadius, r2 = topRadius, h = height, $fn=32);
                if( mountType == TAPHOLE ) {
                    cylinder(r =  holeRadius, h = height * 4, center = true, $fn=32);
                }
            }
            if( mountType == PIN ) {
                translate([0, 0, height - 1])
                pintack( h=pcbHeight + 3, r = holeRadius, lh=3, lt=1, bh=1, br=topRadius );
            }
        }
}

//This is used for placing the mounting holes and for making standoffs
//child elements will be centered on that chosen boards mounting hole centers
module holePlacement(boardType = UNO ) {
    for(i = boardHoles[boardType] ) {
        translate(i)
            child(0);
    }
}

//Places components on board
//  compenent - the data set with a particular component (like boardHeaders)
//  extend - the amount to extend the component in the direction of its socket
//  offset - the amount to increase the components other two boundaries

//Component IDs
ALL = -1;
HEADER_F = 0;
HEADER_M = 1;
USB = 2;
POWER = 3;
RJ45 = 4;

module components( boardType = UNO, component = ALL, extension = 0, offset = 0 ) {
    translate([0, 0, pcbHeight]) {
        for( i = [0:len(components[boardType]) - 1] ){
            if( components[boardType][i][3] == component || component == ALL) {
                assign(
                    //Calculates position + adjustment for offset and extention
                    position = components[boardType][i][0] - (([1,1,1] - components[boardType][i][2]) * offset)
                        + [ min(components[boardType][i][2][0],0),
                            min(components[boardType][i][2][1],0),
                            min(components[boardType][i][2][2],0) ] * extension,
                    //Calculates the full box size including offset and extention
                    dimensions = components[boardType][i][1]
                        + ((components[boardType][i][2] * [1,1,1])
                            * components[boardType][i][2]) * extension
                        + ([1,1,1] - components[boardType][i][2]) * offset * 2
                    ) {
                    translate( position ) color( components[boardType][i][4] )
                        cube( dimensions );
                }
            }
        }
    }
}

module roundedCube( dimensions = [10,10,10], cornerRadius = 1, faces=32 ) {
    hull() cornerCylinders( dimensions = dimensions, cornerRadius = cornerRadius, faces=faces );
}

module cornerCylinders( dimensions = [10,10,10], cornerRadius = 1, faces=32 ) {
    translate([ cornerRadius, cornerRadius, 0]) {
        cylinder( r = cornerRadius, $fn = faces, h = dimensions[2] );
        translate([dimensions[0] - cornerRadius * 2, 0, 0]) cylinder( r = cornerRadius, $fn = faces, h = dimensions[2] );
        translate([0, dimensions[1] - cornerRadius * 2, 0]) {
            cylinder( r = cornerRadius, $fn = faces, h = dimensions[2] );
            translate([dimensions[0] - cornerRadius * 2, 0, 0]) cylinder( r = cornerRadius, $fn = faces, h = dimensions[2] );
        }
    }
}

//Create a clip that snapps into a clipHole
module clip(clipWidth = 5, clipDepth = 5, clipHeight = 5, lipDepth = 1.5, lipHeight = 3) {
    translate([-clipWidth/2,-(clipDepth-lipDepth),0]) rotate([90, 0, 90])
    linear_extrude(height = clipWidth, convexity = 10)
        polygon(    points=[    [0, 0],
                        [clipDepth - lipDepth, 0],
                        [clipDepth - lipDepth, clipHeight - lipHeight],
                        [clipDepth - 0.25, clipHeight - lipHeight],
                        [clipDepth, clipHeight - lipHeight + 0.25],
                        [clipDepth - lipDepth * 0.8, clipHeight],
                        [(clipDepth - lipDepth) * 0.3, clipHeight]
                        ],
                paths=[[0,1,2,3,4,5,6,7]]
            );
}

//Hole for clip
module clipHole(clipWidth = 5, clipDepth = 5, clipHeight = 5, lipDepth = 1.5, lipHeight = 3, holeDepth = 5) {
    offset = 0.1;
    translate([-clipWidth/2,-(clipDepth-lipDepth),0])
    translate([-offset, clipDepth - lipDepth-offset, clipHeight - lipHeight - offset])
        cube( [clipWidth + offset * 2, holeDepth, lipHeight + offset * 2] );
}

module mountingHole(screwHeadRad = woodscrewHeadRad, screwThreadRad = woodscrewThreadRad, screwHeadHeight = woodscrewHeadHeight, holeDepth = 10) {
    union() {
        translate([0, 0, -0.01])
            cylinder( r = screwThreadRad, h = 1.02, $fn = 32 );
        translate([0, 0, 1])
            cylinder( r1 = screwThreadRad, r2 = screwHeadRad, h = screwHeadHeight, $fn = 32 );
        translate([0, 0, screwHeadHeight - 0.01 + 1])
            cylinder( r = screwHeadRad, h = holeDepth - screwHeadHeight + 0.02, $fn = 32 );
    }
}

/******************************** UTILITY FUNCTIONS *******************************/

//Return the length side of a square given its diagonal
function sides( diagonal ) = sqrt(diagonal * diagonal  / 2);

//Return the minimum values between two vectors of either length 2 or 3. 2D Vectors are treated as 3D vectors who final value is 0.
function minVec( vector1, vector2 ) =
    [min(vector1[0], vector2[0]), min(vector1[1], vector2[1]), min((vector1[2] == undef ? 0 : vector1[2]), (vector2[2] == undef ? 0 : vector2[2]) )];

//Return the maximum values between two vectors of either length 2 or 3. 2D Vectors are treated as 3D vectors who final value is 0.
function maxVec( vector1, vector2 ) =
    [max(vector1[0], vector2[0]), max(vector1[1], vector2[1]), max((vector1[2] == undef ? 0 : vector1[2]), (vector2[2] == undef ? 0 : vector2[2]) )];

//Determine the minimum point on a component in a list of components
function minCompPoint( list, index = 0, minimum = [10000000, 10000000, 10000000] ) =
    index >= len(list) ? minimum : minCompPoint( list, index + 1, minVec( minimum, list[index][0] ));

//Determine the maximum point on a component in a list of components
function maxCompPoint( list, index = 0, maximum = [-10000000, -10000000, -10000000] ) =
    index >= len(list) ? maximum : maxCompPoint( list, index + 1, maxVec( maximum, list[index][0] + list[index][1]));

//Determine the minimum point in a list of points
function minPoint( list, index = 0, minimum = [10000000, 10000000, 10000000] ) =
    index >= len(list) ? minimum : minPoint( list, index + 1, minVec( minimum, list[index] ));

//Determine the maximum point in a list of points
function maxPoint( list, index = 0, maximum = [-10000000, -10000000, -10000000] ) =
    index >= len(list) ? maximum : maxPoint( list, index + 1, maxVec( maximum, list[index] ));

//Returns the pcb position and dimensions
function pcbPosition(boardType = UNO) = minPoint(boardShapes[boardType]);
function pcbDimensions(boardType = UNO) = maxPoint(boardShapes[boardType]) - minPoint(boardShapes[boardType]) + [0, 0, pcbHeight];

//Returns the position of the box containing all components and its dimensions
function componentsPosition(boardType = UNO) = minCompPoint(components[boardType]) + [0, 0, pcbHeight];
function componentsDimensions(boardType = UNO) = maxCompPoint(components[boardType]) - minCompPoint(components[boardType]);

//Returns the position and dimensions of the box containing the pcb board
function boardPosition(boardType = UNO) =
    minCompPoint([[pcbPosition(boardType), pcbDimensions(boardType)], [componentsPosition(boardType), componentsDimensions(boardType)]]);
function boardDimensions(boardType = UNO) =
    maxCompPoint([[pcbPosition(boardType), pcbDimensions(boardType)], [componentsPosition(boardType), componentsDimensions(boardType)]])
    - minCompPoint([[pcbPosition(boardType), pcbDimensions(boardType)], [componentsPosition(boardType), componentsDimensions(boardType)]]);

/******************************* BOARD SPECIFIC DATA ******************************/
//Board IDs
NG = 0;
DIECIMILA = 1;
DUEMILANOVE = 2;
UNO = 3;
LEONARDO = 4;
MEGA = 5;
MEGA2560 = 6;
DUE = 7;
YUN = 8;
INTELGALILEO = 9;
TRE = 10;
ETHERNET = 11;

/********************************** MEASUREMENTS **********************************/
pcbHeight = 1.7;
headerWidth = 2.54;
headerHeight = 9;
mountingHoleRadius = 3.2 / 2;

ngWidth = 53.34;
leonardoDepth = 68.58 + 1.1;           //PCB depth plus offset of USB jack (1.1)
ngDepth = 68.58 + 6.5;
megaDepth = 101.6 + 6.5;               //Coding is my business and business is good!
dueDepth = 101.6 + 1.1;

arduinoHeight = 11 + pcbHeight + 0;

/********************************* MOUNTING HOLES *********************************/

//Duemilanove, Diecimila, NG and earlier
ngHoles = [
        [  2.54, 15.24 ],
        [  17.78, 66.04 ],
        [  45.72, 66.04 ]
        ];

//Uno, Leonardo holes
unoHoles = [
        [  2.54, 15.24 ],
        [  17.78, 66.04 ],
        [  45.72, 66.04 ],
        [  50.8, 13.97 ]
        ];

//Due and Mega 2560
dueHoles = [
        [  2.54, 15.24 ],
        [  17.78, 66.04 ],
        [  45.72, 66.04 ],
        [  50.8, 13.97 ],
        [  2.54, 90.17 ],
        [  50.8, 96.52 ]
        ];

// Original Mega holes
megaHoles = [
        [  2.54, 15.24 ],
        [  50.8, 13.97 ],
        [  2.54, 90.17 ],
        [  50.8, 96.52 ],
      [  2.54, 96.52+12 ],
        [  49, 96.52+12 ],
      [  2.54, 96.52+42 ],
        [  49, 96.52+42 ]
        ];

boardHoles = [
        ngHoles,        //NG
        ngHoles,        //Diecimila
        ngHoles,        //Duemilanove
        unoHoles,       //Uno
        unoHoles,       //Leonardo
        megaHoles,      //Mega
        dueHoles,       //Mega 2560
        dueHoles,       //Due
        0,              //Yun
        0,              //Intel Galileo
        0,              //Tre
        unoHoles        //Ethernet
        ];

/********************************** BOARD SHAPES **********************************/
ngBoardShape = [
        [  0.0, 0.0 ],
        [  53.34, 0.0 ],
        [  53.34, 66.04 ],
        [  50.8, 66.04 ],
        [  48.26, 68.58 ],
        [  15.24, 68.58 ],
        [  12.7, 66.04 ],
        [  1.27, 66.04 ],
        [  0.0, 64.77 ],
        [  50.8, 66.04 + accu_monitor]
        ];

megaBoardShape = [
        [  0.0, 0.0 ],
        [  53.34, 0.0 ],
        [  53.34, 99.06 ],
        [  52.07, 99.06],
        [  49.53, 101.6 + 38],
        [  15.24, 101.6 + 38],
        [  12.7, 99.06 ],
        [  2.54, 99.06 ],
        [  0.0, 96.52 ]
        ];

boardShapes = [
        ngBoardShape,   //NG
        ngBoardShape,   //Diecimila
        ngBoardShape,   //Duemilanove
        ngBoardShape,   //Uno
        ngBoardShape,   //Leonardo
        megaBoardShape, //Mega
        megaBoardShape, //Mega 2560
        megaBoardShape, //Due
        0,              //Yun
        0,              //Intel Galileo
        0,              //Tre
        ngBoardShape    //Ethernet
        ];

/*********************************** COMPONENTS ***********************************/

//Component data.
//[position, dimensions, direction(which way would a cable attach), type(header, usb, etc.), color]
ngComponents = [
    [[1.27, 17.526, 0], [headerWidth, headerWidth * 10, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[1.27, 44.45, 0], [headerWidth, headerWidth * 8, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 26.67, 0], [headerWidth, headerWidth * 8, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 49.53, 0], [headerWidth, headerWidth * 6, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[9.34, -6.5, 0],[12, 16, 11],[0, -1, 0], USB, "LightGray" ],
    [[40.7, -1.8, 0], [9.0, 13.2, 10.9], [0, -1, 0], POWER, "Black" ]
    ];

etherComponents = [
    [[1.27, 17.526, 0], [headerWidth, headerWidth * 10, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[1.27, 44.45, 0], [headerWidth, headerWidth * 8, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 26.67, 0], [headerWidth, headerWidth * 8, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 49.53, 0], [headerWidth, headerWidth * 6, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[7.20, -4.4, 0],[16, 22, 13],[0, -1, 0], RJ45, "Green" ],
    [[40.7, -1.8, 0], [9.0, 13.2, 10.9], [0, -1, 0], POWER, "Black" ]
    ];

leonardoComponents = [
    [[1.27, 17.526, 0], [headerWidth, headerWidth * 10, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[1.27, 44.45, 0], [headerWidth, headerWidth * 8, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 26.67, 0], [headerWidth, headerWidth * 8, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 49.53, 0], [headerWidth, headerWidth * 6, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[11.5, -1.1, 0],[7.5, 5.9, 3],[0, -1, 0], USB, "LightGray" ],
    [[40.7, -1.8, 0], [9.0, 13.2, 10.9], [0, -1, 0], POWER, "Black" ]
    ];

megaComponents = [
    [[1.27, 22.86, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[1.27, 44.45, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[1.27, 67.31, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[49.53, 31.75, 0], [headerWidth, headerWidth * 6, headerHeight ], [0, 0, 1], HEADER_F, "Black"],
    [[49.53, 49.53, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[49.53, 72.39, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[1.27, 92.71, 0], [headerWidth * 18, headerWidth * 2, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[9.34, -6.5, 0],[12, 16, 11],[0, -1, 0], USB, "LightGray"],
    [[40.7, -1.8, 0], [9.0, 13.2, 10.9], [0, -1, 0], POWER, "Black" ]
    ];

mega2560Components = [
    [[1.27, 17.526, 0], [headerWidth, headerWidth * 10, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[1.27, 44.45, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[1.27, 67.31, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 26.67, 0], [headerWidth, headerWidth * 8, headerHeight ], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 49.53, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[49.53, 72.39, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[1.27, 92.71, 0], [headerWidth * 18, headerWidth * 2, headerHeight], [0, 0, 1], HEADER_F, "Black" ],
    [[9.34, -6.5, 0],[12, 16, 11],[0, -1, 0], USB, "LightGray" ],
    [[40.7, -1.8, 0], [9.0, 13.2, 10.9], [0, -1, 0], POWER, "Black" ]
    ];

dueComponents = [
    [[1.27, 17.526, 0], [headerWidth, headerWidth * 10, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[1.27, 44.45, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[1.27, 67.31, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[49.53, 26.67, 0], [headerWidth, headerWidth * 8, headerHeight ], [0, 0, 1], HEADER_F, "Black"],
    [[49.53, 49.53, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[49.53, 72.39, 0], [headerWidth, headerWidth * 8, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[1.27, 92.71, 0], [headerWidth * 18, headerWidth * 2, headerHeight], [0, 0, 1], HEADER_F, "Black"],
    [[11.5, -1.1, 0], [7.5, 5.9, 3], [0, -1, 0], USB, "LightGray" ],
    [[27.365, -1.1, 0], [7.5, 5.9, 3], [0, -1, 0], USB, "LightGray" ],
    [[40.7, -1.8, 0], [9.0, 13.2, 10.9], [0, -1, 0], POWER, "Black" ]
    ];

components = [
    ngComponents,       //NG
    ngComponents,       //Diecimila
    ngComponents,       //Duemilanove
    ngComponents,       //Uno
    leonardoComponents, //Leonardo
    megaComponents,     //Mega
    mega2560Components, //Mega 2560
    dueComponents,      //Due
    0,                  //Yun
    0,              //Intel Galileo
    0,          //Tre
        etherComponents         //Ethernet
    ];

/****************************** NON-BOARD PARAMETERS ******************************/

//Mounting holes
woodscrewHeadRad = 4.6228;  //Number 8 wood screw head radius
woodscrewThreadRad = 2.1336;    //Number 8 wood screw thread radius
woodscrewHeadHeight = 2.8448;   //Number 8 wood screw head height
